钢质洁净门

钢质洁净门

Steel clean door

产品介绍 / Product introduction

铝合页采用圆弧设计，轴心增加尼龙轴套，摩擦无粉尘；门框独有的密封条，密封性强，降噪隔音效果好；钢制门板，防撞，不易变形，易清洁；款式多样，支持尺寸定制。

应用范围：广泛应用于彩钢板墙体净化工程，涵盖医药、食品、化妆品、电子制作行业。

Aluminum hinge adopts arc design, the axis adds nylon sleeve, friction without dust;Door frame unique sealing strip, strong sealing, good noise reduction and sound insulation effect; Steel door panel, anti-collision, not easy to deform, easy to clean; Various styles, support size customization.

Application: Widely used in color steel plate wall purification project, covering medicine, food, cosmetics, electronic production industry.

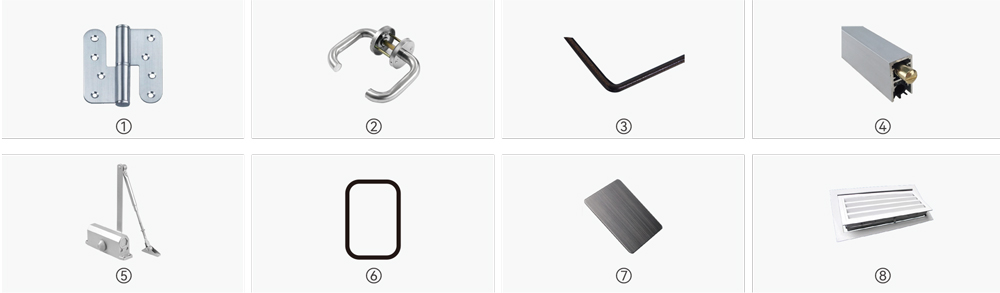

产品配件 / Product accessories

① 不锈钢合页 ② 不锈钢把手、锁 ③ 硅胶条 ④ 升降扫地条 ⑤ 闭门器（选配，可明装，暗装） ⑥ 双层观察窗 ⑦ 304 不锈钢板 / 镀锌板 ⑧ 回风口 ( 选配）

① Stainless steel hinge ② stainless steel handle, lock ③ silicone strip ④ lifting sweeping strip ⑤ door closers (optional, can be installed, hidden) ⑥ Double observation window ⑦ 304 stainless steel plate/galvanized plate ⑧ return air (optional)

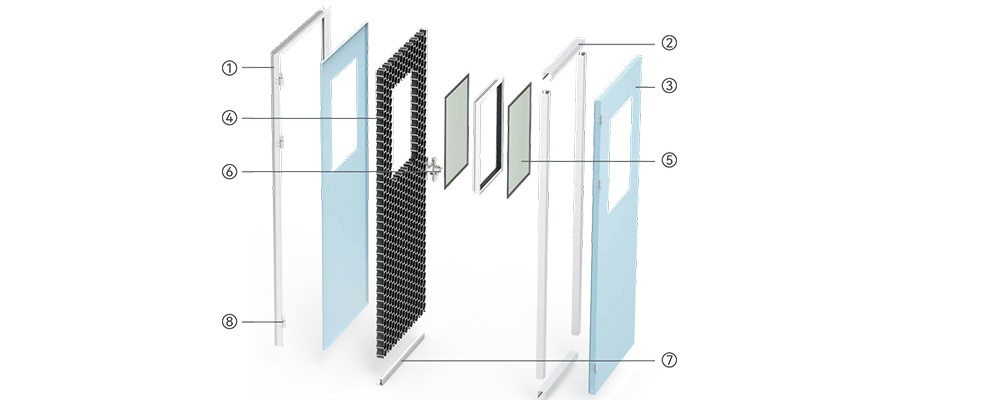

产品说明 / Product accessories

①门框 : 采用镀锌板，平滑过渡设计，防撞伤，易清洁

②门扇框 : 采用镀锌板边框，表面平整

③面板 : 彩涂板，抗撞，耐磨，抗菌

④门扇芯材 : 采用铝蜂窝，其中心为铝质六边形，蜂窝无可燃物质，阻燃，防水、防潮、无有害气体释放

⑤观察窗 : 采用双层钢化玻璃，窗框和门扇一体复合，不易脱落，无死角，防结雾

⑥门锁 : 防撞、防夹 , 执手可用手肘开门

⑦升降扫地条 : 采用特有双弹片设计，下沉顺畅，力度平均，静音，气密性好

⑧合页 : 长时间使用不会产生金属粉末，静音，耐磨，易清洁，牢固美观① Door frame: Adopt galvanized plate, smooth transition design, anti-collision, easy to clean

② Door frame: Adopt galvanized plate frame, the surface is smooth

③ Panel: color coated plate, anti-collision, wear-resistant, antibacterial

④ Door core material: aluminum honeycomb, its center is aluminum hexagonal, honeycomb non-combustible substances, flame retardant, waterproof, moisture-proof, no harmful gas release

⑤ Observation window: double toughened glass, window frame and door composite, not easy to fall off, no dead Angle, anti-fog

⑥ Door lock: anti-collision, anti-clamp, the hand can be opened by elbow

⑦ Lifting sweeping strip: special double shrapnel design, smooth sinking, average strength, quiet, good air tightness

⑧ Hinge: long-term use will not produce metal powder, quiet, wear-resistant, easy to clean, firm and beautiful

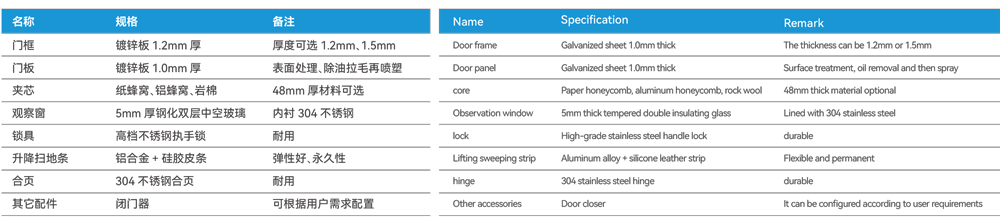

产品参数 / Product parameter

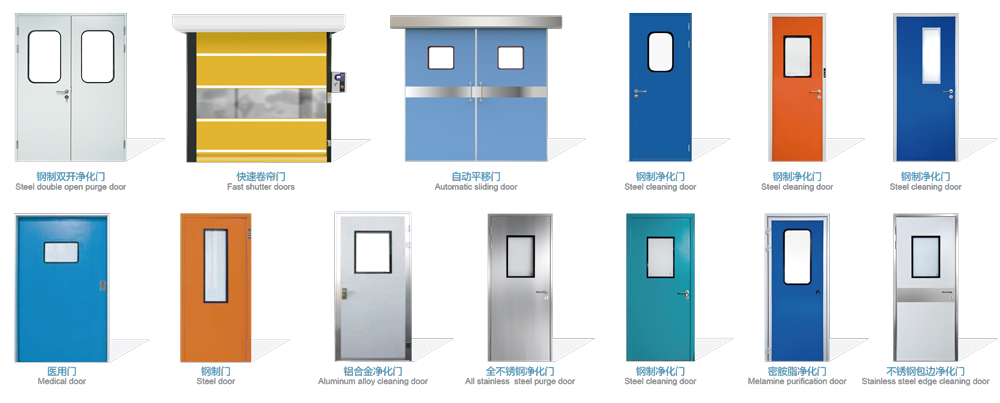

净化门窗

Cleanroom windows & doors

净化门窗是针对彩钢板隔墙安装而设计开发的—种新型门窗，其外观精美，坚固耐用，开启灵活。用户根据要求选用铝合金材料、不锈钢材料和自动封闭装置，还可以任意选定可视窗型式、尺寸以及门板颜色和门锁型号。

Purifying door and window is a new type of door and window designed and developed for Color Steel Plate partition wall installation. Users can choose aluminum alloy material, stainless steel material and automatic closing device according to the requirements. They can also choose the type and size of the visible window, the color of the door plate and the type of the door lock.

成品门按材质可分为：铝合金框成品门、不锈钢框成品门、全不锈钢成品门、钢制成品门窗；可带圆角边或方形边双层玻璃观察窗。

Inished door according to material can be divided into:

Aluminum Alloy frame finished door, stainless steel frame finished door, all stainless steel finished door, steel products doors and windows.
