不锈钢洁净门

不锈钢洁净门

Stainless steel clean door

产品介绍 / Product introduction

启闭平稳、便捷、安全可靠，能满足气密、隔音、智能等特殊要求 ;门板各边安装上橡胶封边，填封了门板与门框边的缝隙，气密性能优良，起到防尘防菌和降低空气渗漏，保证相邻房间的空气压差梯度分布的作用 ;三周装有密封条，门体底部装有升降扫地条，符合净化行业的使用要求。

The opening and closing is stable, convenient, safe and reliable, and can meet the special requirements of air tightness, sound insulation, intelligence, etc.Rubber edge seals are installed on each side of the door panel to seal the gap between the door panel and the door frame. The air tightness is excellent, which can prevent dust and bacteria, reduce air leakage, and ensure the gradient distribution of air pressure difference in adjacent rooms.Sealing strips are installed on the three sides, and lifting sweeping strips are installed at the bottom of the door body, meeting the use requirements of the purification industry

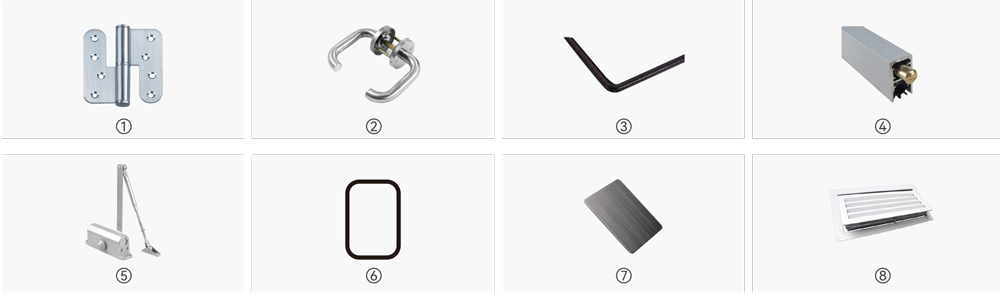

产品配件 / Product accessories

① 不锈钢合页 ② 不锈钢把手、锁 ③ 硅胶条 ④ 升降扫地条 ⑤ 闭门器（选配，可明装，暗装） ⑥ 双层观察窗 ⑦ 304 不锈钢板 / 镀锌板 ⑧ 回风口 ( 选配）

① Stainless steel hinge ② stainless steel handle, lock ③ silicone strip ④ lifting sweeping strip ⑤ door closers (optional, can be installed, hidden) ⑥ Double observation window ⑦ 304 stainless steel plate/galvanized plate ⑧ return air (optional)

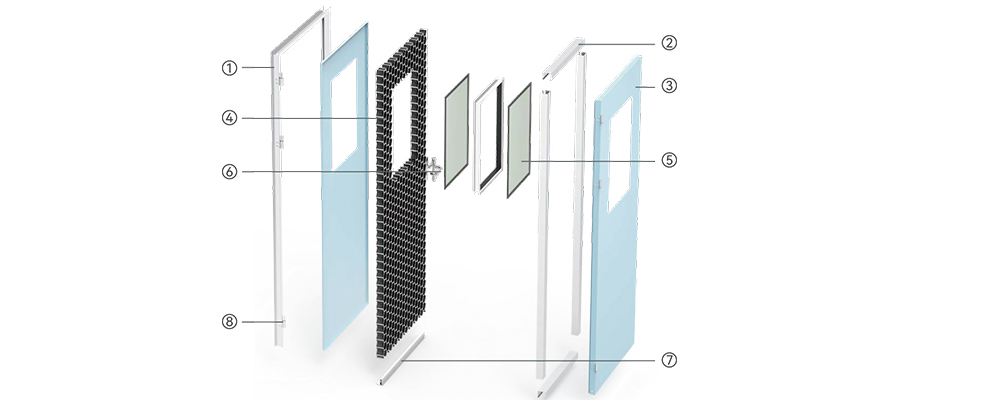

产品说明 / Product accessories

①门框 : 采用不锈钢板，平滑过渡设计，防撞伤，易清洁

②门扇不锈钢板 : 抗撞，耐磨，抗菌

③门扇芯材 : 采用纸蜂窝，其中心为六边形蜂窝

④观察窗 : 采用双层钢化玻璃，窗框和门扇一体复合，不易脱落，无死角，防结雾

⑤门锁 : 防撞、防夹 , 执手可用手肘开门

⑥升降扫地条 : 采用特有双弹片设计，下沉顺畅，力度平均，静音，气密性好

⑦合页 : 长时间使用不会产生金属粉末，静音，耐磨，易清洁，牢固美观

① Door frame: stainless steel plate, smooth transition design, anti-collision, easy to clean

② Door stainless steel plate: anti-collision, wear-resistant, antibacterial

③ The core material of the door: the paper honeycomb is used, and the center is a hexagonal honeycomb

④ Observation window: double toughened glass, window frame and door composite, not easy to fall off, no dead Angle, anti-fog

⑤ Door lock: anti-collision, anti-clip, handle the elbow can open the door

⑥ Lifting sweeping strip: special double shrapnel design, smooth sinking, average strength, quiet, good air tightness

⑦ Hinge: long-term use will not produce metal powder, quiet, wear-resistant, easy to clean, firm and beautiful

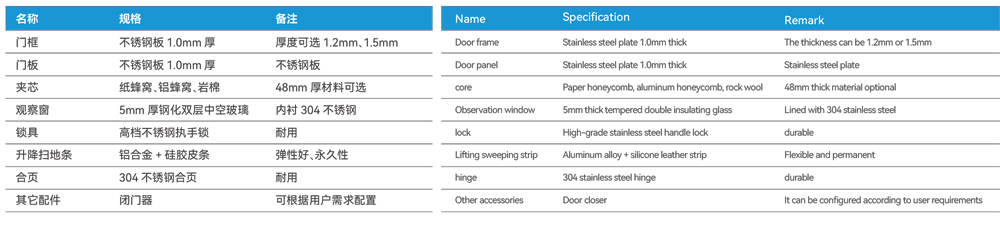

产品参数 / Product parameter

净化门窗

Cleanroom windows & doors

净化门窗是针对彩钢板隔墙安装而设计开发的—种新型门窗，其外观精美，坚固耐用，开启灵活。用户根据要求选用铝合金材料、不锈钢材料和自动封闭装置，还可以任意选定可视窗型式、尺寸以及门板颜色和门锁型号。

Purifying door and window is a new type of door and window designed and developed for Color Steel Plate partition wall installation. Users can choose aluminum alloy material, stainless steel material and automatic closing device according to the requirements. They can also choose the type and size of the visible window, the color of the door plate and the type of the door lock.

成品门按材质可分为：铝合金框成品门、不锈钢框成品门、全不锈钢成品门、钢制成品门窗；可带圆角边或方形边双层玻璃观察窗。

Inished door according to material can be divided into:

Aluminum Alloy frame finished door, stainless steel frame finished door, all stainless steel finished door, steel products doors and windows.
